Pipa SNI HDPE memiliki 5 metode dalam penyambungannya, Metode-metode ini memberikan sambungan yang kokoh dan tahan lama, sesuai untuk berbagai aplikasi termasuk distribusi air, sistem saluran pembuangan, dan proyek-proyek industri.
- Butt Welding
- Electro Fushion
- Stub End & Flange Adpator
- Compression Fittings
- Push On System

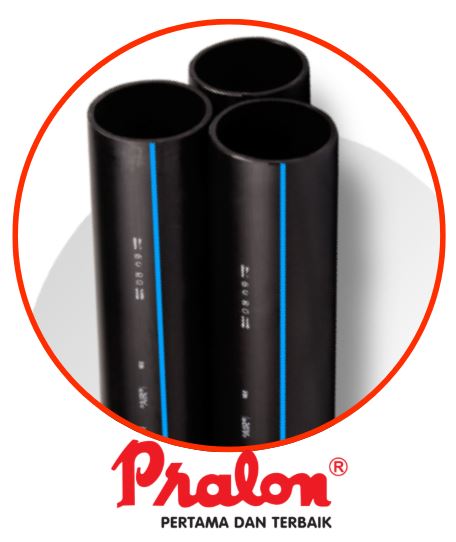

Tabel Harga Pipa HDPE “Pralon”
📋 Daftar Harga HDPE Pralon
📌 Informasi Harga
✔ Harga sudah termasuk PPN
✔ Harga merupakan harga normal sebelum diskon
📞 Hubungi kami melalui WhatsApp untuk mendapatkan penawaran terbaik
✔ Harga sudah termasuk PPN
✔ Harga merupakan harga normal sebelum diskon
📞 Hubungi kami melalui WhatsApp untuk mendapatkan penawaran terbaik
Filter PN :
| No |
OD (mm) |
ND (inch) |
PN6
SDR26 | S12.5 |
PN8
SDR21 | S10 |
PN10
SDR17 | S8 |
PN12.5
SDR13.6 | S6.3 |
PN16
SDR11 | S5 |
PN20
SDR9 | S4 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Tebal (mm) |
Harga /m |
Tebal (mm) |
Harga /m |
Tebal (mm) |
Harga /m |
Tebal (mm) |
Harga /m |
Tebal (mm) |
Harga /m |
Tebal (mm) |
Harga /m |
|||
| 1 | 20 | 1/2 | - | - | - | - | - | - | - | - | 2 | 14.763 | 2.3 | 16.705 |
| 2 | 25 | 3/4 | - | - | - | - | - | - | - | - | 2.3 | 21.645 | 3 | 26.529 |
| 3 | 32 | 1 | - | - | - | - | 2 | 24.586 | - | - | 3 | 34.410 | 3.6 | 42.291 |
| 4 | 40 | 1 1/4 | - | - | 2 | 30.469 | 2.4 | 36.352 | - | - | 3.7 | 53.058 | 4.5 | 63.880 |
| 5 | 50 | 1 1/2 | 2 | 39.294 | 2.4 | 46.176 | 3 | 55.999 | - | - | 4.6 | 82.528 | 5.6 | 99.234 |
| 6 | 63 | 2 | 2.5 | 61.938 | 3 | 70.762 | 3.8 | 88.411 | - | - | 5.8 | 129.703 | 7.1 | 158.170 |
| 7 | 75 | 2 1/2 | 2.9 | 84.526 | 3.6 | 102.175 | 4.5 | 124.764 | - | - | 6.8 | 181.762 | 8.4 | 218.115 |
| 8 | 90 | 3 | 3.5 | 118.881 | 4.3 | 145.410 | 5.4 | 179.820 | - | - | 8.2 | 262.293 | 10.1 | 315.351 |
| 9 | 110 | 4 | 4.2 | 179.820 | 5.3 | 218.115 | 6.6 | 267.232 | - | - | 10 | 389.998 | 12.3 | 468.586 |
| 10 | 125 | 5 | 4.8 | 226.939 | 6 | 279.997 | 7.4 | 340.881 | - | - | 11.4 | 505.938 | 14 | 606.115 |
| 11 | 140 | 5 | 5.4 | 290.820 | 6.7 | 351.703 | 8.3 | 432.234 | - | - | 12.7 | 632.644 | 15.7 | 759.406 |
| 12 | 160 | 6 | 6.2 | 375.291 | 7.7 | 459.762 | 9.5 | 556.998 | - | - | 14.6 | 827.172 | 17.9 | 989.232 |
| 13 | 180 | 7 | 6.9 | 467.643 | 8.6 | 577.644 | 10.7 | 704.350 | - | - | 16.4 | 1.046.230 | 20.1 | 1.250.581 |
| 14 | 200 | 8 | 7.7 | 580.585 | 9.6 | 715.173 | 11.9 | 871.350 | - | - | 18.2 | 1.289.875 | 22.4 | 1.547.229 |
| 15 | 225 | 9 | 8.6 | 728.937 | 10.8 | 904.761 | 13.4 | 1.108.113 | - | - | 20.5 | 1.632.699 | 25.2 | 1.958.817 |
| 16 | 250 | 10 | 9.6 | 903.762 | 11.9 | 1.107.114 | 14.8 | 1.358.640 | - | - | 22.7 | 2.014.816 | 27.9 | 2.408.755 |
| 17 | 280 | 10 | 10.7 | 1.127.760 | 13.4 | 1.396.935 | 16.6 | 1.706.347 | - | - | 25.4 | 2.517.813 | - | - |
| 18 | 315 | 12 | 12.1 | 1.435.230 | 15 | 1.757.463 | 18.7 | 2.162.169 | - | - | 28.6 | 3.188.752 | - | - |
| 19 | 355 | 14 | 13.6 | 1.815.405 | 16.9 | 2.230.933 | 21.1 | 2.750.580 | - | - | 32.2 | 4.046.338 | - | - |
| 20 | 400 | 16 | 15.3 | 2.301.696 | 19.1 | 2.842.932 | 23.7 | 3.478.518 | - | - | 36.3 | 5.138.689 | - | - |
| 21 | 450 | 18 | 17.2 | 2.910.753 | 21.5 | 3.597.399 | 26.7 | 4.407.810 | - | - | 40.9 | 6.519.862 | - | - |
| 22 | 500 | 20 | 19.1 | 3.596.400 | 23.9 | 4.440.222 | 29.7 | 5.455.039 | - | - | 45.4 | 8.043.504 | - | - |
| 23 | 560 | 22 | 21.4 | 4.509.985 | 26.7 | 5.569.924 | 33.2 | 6.832.272 | - | - | 50.8 | 10.078.911 | - | - |
| 24 | 630 | 24 | 24.1 | 5.714.335 | 30 | 7.032.682 | 37.4 | 8.655.502 | - | - | 57.2 | 12.767.608 | - | - |
| 25 | 710 | 28 | - | - | 33.9 | 8.955.147 | 42.1 | 10.981.729 | - | - | - | - | - | - |
| 26 | 800 | 32 | - | - | 38.1 | 11.432.611 | 47.4 | 13.928.779 | - | - | - | - | - | - |
